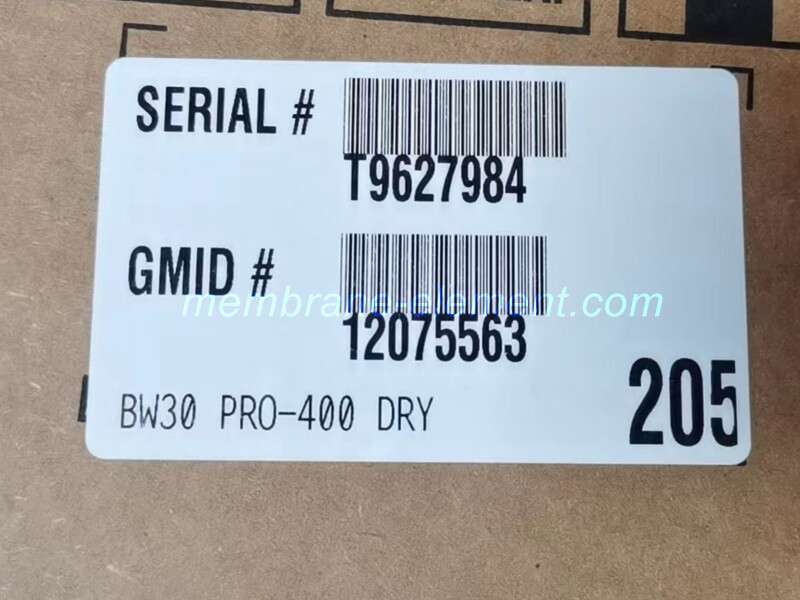

RO DOW Filmtec BW30PRO-400 Deet Sheet
High Rejection and High Performance Industry-Standard Brackish Water RO DOW Filmtec BW30PRO-400
Key Features
- Delivers consistent water quality and higher rejection and flow than previous generation BW30 product.
- Based on historical BW30 Industry-standard RO membrane with decades of proven performance.
- Excellent durability resulting in stable, long-term performance.
Key Applications
- Demineralization for industrial applications, such as: Power
Generation, Steel & Metal, Chemical & Petrochemical - Municipal water purification
| Model: | BW30PRO-400 |
| Salt rejection: | 99.7% |
| Effective membrane area: | 37㎡ |
| Test pressure: | 15.5bar |
| Capacity: | 11000GPD |
| Membrane type: | T.F.C |
| PH range for continue working: | 2-11 |
| Brand Name: | Dupont FILMTEC |
| Condition: | New |
| Size: | 201*201*1016mm |
| Weight: | 13KG |
| Material: | CARTON |
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food & Beverage Shops |
Deet sheet | |
RO DOW Filmtec BW30PRO-400 Typical Properties
| Product | Active area ft2(m2) | Feed spacer thickness (mil） | Permeate flow rate gpd(m3/d) | Stabilized salt rejection(%) | Minimum salt rejection(%) |
| BW30 PRO-400 | 400(37) | 28 | 11,000(42) | 99.6 | 99.4 |
Element Dimensions
Replacable model for each Brand RO membrane
| DOW Filmtec | Hydranautics | Toray | Daltonen | Vontron | CSM | LG | |
| 4inch backwash RO membrane | BW30PRO-4040 | CAP2-4040 | TM710D | BW4040PRO | LP21-4040 | RE4040-BE | BW 4040 R |
| 8inch brackish RO membrane | BW30PRO-400 | CAP3-LD | TM720D-400 | BW8400PRO | LP21-8040 | RE8040-BE | BW 400 R Dura |
| 8inch brackish RO membrane Fouling Resistant | BW30FR-400 | LFC3-LD | TML20D-400 | FR8400 | FR12-8040 FR22-8040PRO | RE8040-FEN | BW 400 AFR |
| 8inch sea water RO membrane | SW30HR-380 | SWC5-LD | TM820M-400 TM820V-400 | SW8400HR SW8400HRLE | SW8040HR-400 | RE8040-SHA400 RE8040-SHF | SW 400 SR SW 400 R |
