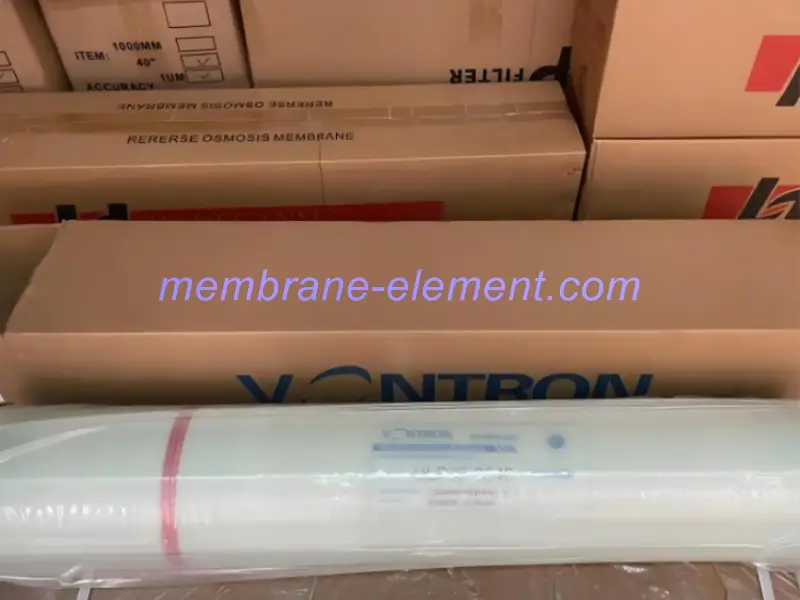

SW8040FR-400 RO Membrane
SW8040FR-400 Vontron RO Membrane ElementsSW8040FR-400 Vontron RO Membrane Elements, SW Series is used for sea water desalination. It can improve permeate flow by optimizing membrane element structure. It has the features of high rejection rate, stable performance, low operating cost and small equipment investment. It can be used to obtain qualified drinking water from seawater.
Applicable Industries: Industrial pure water production, for example: electric power, steel, chemical industry, etc. Desalination of drinking water, for example: pure water, packaged water.
| Model: | SW8040FR-400 |
| Salt rejection: | 99.8% |
| Effective membrane area: | 37.2㎡ |
| Test pressure: | 15.5bar |
| Capacity: | 8200GPD |
| Membrane type: | T.F.C |
| PH range for continue working: | 2-11 |
| Brand Name: | Vontron |
| Condition: | New |
| Size: | 201*201*1016mm |
| Weight: | 13KG |
| Material: | CARTON |
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food & Beverage Shops |
Deet sheet | |
Typical Properties
| Product | Active area ft²(m²) | Permeate flow rategpd(m³/d) | Stabilized salt rejection(%) |
| SW8040FR-400 | 400(37.2) | 8200(31) | 99.8 |
Element Dimensions
Replacable model for each Brand RO membrane
| DOW Filmtec | Hydranautics | Toray | Daltonen | Vontron | CSM | LG | |
| 4inch backwash RO membrane | BW30PRO-4040 | CAP2-4040 | TM710D | BW4040PRO | LP21-4040 | RE4040-BE | BW 4040 R |
| 8inch brackish RO membrane | BW30PRO-400 | CAP3-LD | TM720D-400 | BW8400PRO | LP21-8040 | RE8040-BE | BW 400 R Dura |
| 8inch brackish RO membrane Fouling Resistant | BW30FR-400 | LFC3-LD | TML20D-400 | FR8400 | FR12-8040 FR22-8040PRO | RE8040-FEN | BW 400 AFR |
| 8inch sea water RO membrane | SW30HR-380 | SWC5-LD | TM820M-400 TM820V-400 | SW8400HR SW8400HRLE | SW8040HR-400 | RE8040-SHA400 RE8040-SHF | SW 400 SR SW 400 R |
