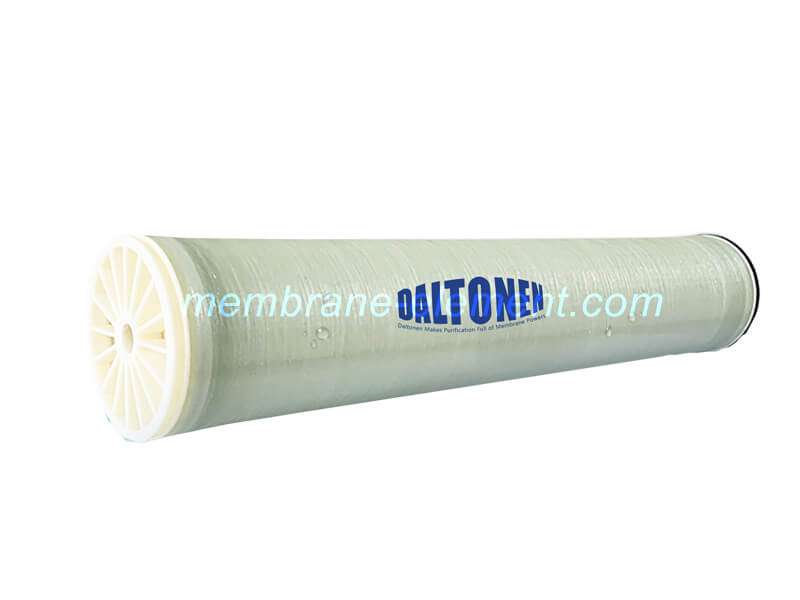

Daltonen SW8400HR Seawater RO Membrane Element
Daltonen SW8400HR seawater RO membrane SW special reverse osmosis membrane element for seawater desalination adopts innovative technology, with high compressive tightness at the bottom of the supporting layer of the membrane, thick and dense cortex, wear resistance and chemical degradation resistance; Using the short membrane structure, the number of membrane pages is increased, the membrane efficiency is greatly improved, and the ultra-high desalination rate and ultra-high boron interception rate under the condition of high-yield water are realized. It has wide pH resistance range and high cleaning efficiency. It can use ordinary acid and alkali for strong and efficient cleaning. Because the cleaning is more thorough, the membrane system can operate under low pressure for a long time, which can greatly reduce the operation cost.
| Model: | SW8400HR |
| Salt rejection: | 99.8% |
| Effective membrane area: | 37.2㎡ |
| Test pressure: | 15.5bar |
| Capacity: | 6,000GPD |
| Membrane type: | T.F.C |
| PH range for continue working: | 2-11 |
| Brand Name: | Daltonen |
| Condition: | New |
| Size: | 201*201*1016mm |
| Weight: | 13KG |
| Material: | CARTON |
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food & Beverage Shops |
| Deet sheet | |
Typical Properties
| Product | Active area ft²(m²) | Permeate flow rategpd(m³/d) | Stabilized salt rejection(%) |
| SW8400HR | 400 (37.2) | 6,000 (23) | 99.8 |
Element Dimensions

Replacable model for each Brand RO membrane
| DOW Filmtec | Hydranautics | Toray | Daltonen | Vontron | CSM | LG | |
| 4inch backwash RO membrane | BW30PRO-4040 | CAP2-4040 | TM710D | BW4040PRO | LP21-4040 | RE4040-BE | BW 4040 R |
| 8inch brackish RO membrane | BW30PRO-400 | CAP3-LD | TM720D-400 | BW8400PRO | LP21-8040 | RE8040-BE | BW 400 R Dura |
| 8inch brackish RO membrane Fouling Resistant | BW30FR-400 | LFC3-LD | TML20D-400 | FR8400 | FR12-8040 FR22-8040PRO | RE8040-FEN | BW 400 AFR |
| 8inch sea water RO membrane | SW30HR-380 | SWC5-LD | TM820M-400 TM820V-400 | SW8400HR SW8400HRLE | SW8040HR-400 | RE8040-SHA400 RE8040-SHF | SW 400 SR SW 400 R |
