TMG20D-440 Filtration Element Membrane
The TORAY TMG20D-440 Filtration Element Membrane is an incredible product that stands out with its unique and noteworthy features, providing more benefits than imaginable. Boasting a revolutionary membrane design that ensures ultra-low pressures, this filtration element achieves maximum efficiency while using considerably less energy than comparable products. Its top-of-the-line product flow rate is unmatched, making it the ideal choice for those looking for reliable, efficient, and effective filtration. No wonder it is considered to be one of the best options available in the filtration industry today. Not only does the TMG20D-440 filtration element upgrade existing systems, but it also enhances the filtration process’s performance to its maximum potential. With superior filtration capabilities, this membrane delivers outstanding quality and unmatched longevity, guaranteeing unwavering reliability.
| Model: | TMG20D-440 |
| Salt rejection: | 99.7% |
| Effective membrane area: | 41㎡ |
| Test pressure: | 15.5bar |
| Capacity: | 13,300GPD |
| Membrane type: | T.F.C |
| PH range for continue working: | 2-11 |
| Brand Name: | TORAY |
| Condition: | New |
| Size: | 201*201*1016mm |
| Weight: | 13KG |
| Material: | CARTON |
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food & Beverage Shops |
Deet sheet | |
Typical Properties
| Product | Active area ft²(m²) | Feed spacer thickness（mil） | Permeate flow rategpd(m³/d) | Stabilized salt rejection(%) |
| TMG20D-440 | 440(41) | 28 | 13,300(50.3) | 99.7 |

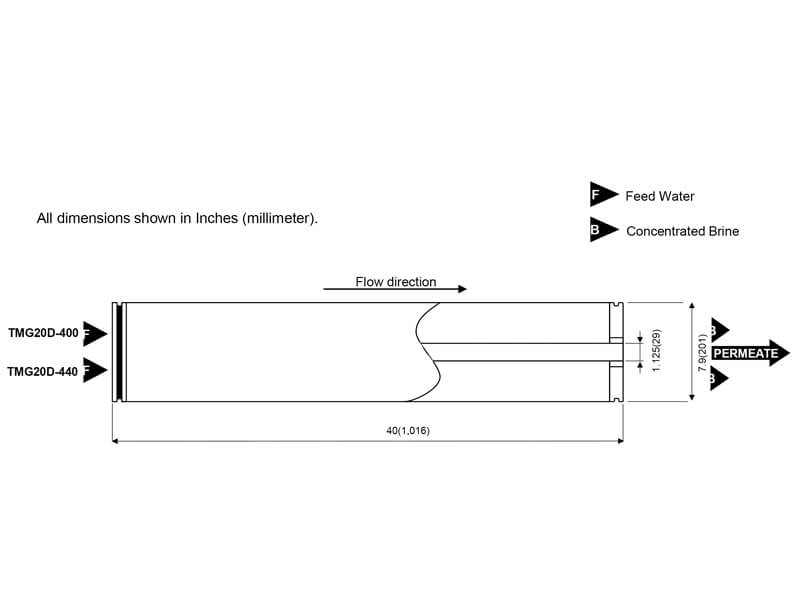

Element Dimensions
Replacable model for each Brand RO membrane
| DOW Filmtec | Hydranautics | Toray | Daltonen | Vontron | CSM | LG | |
| 4inch backwash RO membrane | BW30PRO-4040 | CAP2-4040 | TM710D | BW4040PRO | LP21-4040 | RE4040-BE | BW 4040 R |
| 8inch brackish RO membrane | BW30PRO-400 | CAP3-LD | TM720D-400 | BW8400PRO | LP21-8040 | RE8040-BE | BW 400 R Dura |
| 8inch brackish RO membrane Fouling Resistant | BW30FR-400 | LFC3-LD | TML20D-400 | FR8400 | FR12-8040 FR22-8040PRO | RE8040-FEN | BW 400 AFR |
| 8inch sea water RO membrane | SW30HR-380 | SWC5-LD | TM820M-400 TM820V-400 | SW8400HR SW8400HRLE | SW8040HR-400 | RE8040-SHA400 RE8040-SHF | SW 400 SR SW 400 R |
