Vontron FR12-8040 RO Membrane Element
Vontron FR12-8040 RO Membrane Element, FR series of fouling resistant aromatic polyamide composite membrane element is developed by VONTRON for complex water quality. FR series element with special membrane preparation process, it improved the hydrophilicity, charge characteristic and roughness, can effectively reduce the breeding of biofouling and adsorption of pollutants in the membrane surface. The element is applied a special 34 mil spacer design, which effectively reduced fouling and pressure drop, with more durable on cleaning can extent the service life.
FR series and PURO Series of fouling resistant membranes normally suitable for treatment of complex water source with TDS less than 10000 ppm. It is mainly used for purification of surface water, mining waste water, municipal reclaimed water, industrial waste water, RO brackish water, etc.
| Model: | FR12-8040 |
| Salt rejection: | 99.5% |
| Effective membrane area: | 39.7㎡ |
| Test pressure: | 15.5bar |
| Capacity: | 10,500GPD |
| Membrane type: | T.F.C |
| PH range for continue working: | 2-11 |
| Brand Name: | Vontron |
| Condition: | New |
| Size: | 201*201*1016mm |
| Weight: | 13KG |
| Material: | CARTON |
| Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food & Beverage Shops |
Deet sheet | |
Typical Properties
| Product | Active area ft²(m²) | Permeate flow rategpd(m³/d) | Stabilized salt rejection(%) |
| FR12-8040 | 400(37.2) | 10500（39.7） | 99.5 |

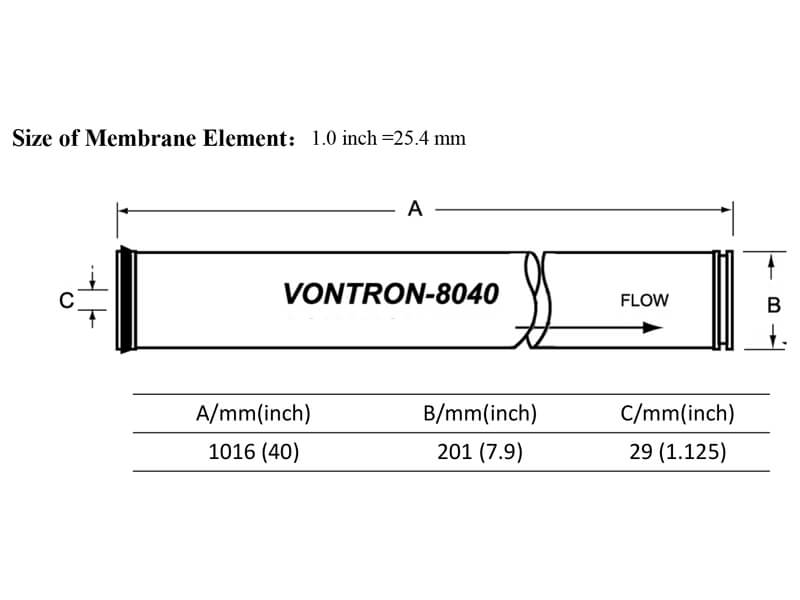

Element Dimensions
Replacable model for each Brand RO membrane
| DOW Filmtec | Hydranautics | Toray | Daltonen | Vontron | CSM | LG | |
| 4inch backwash RO membrane | BW30PRO-4040 | CAP2-4040 | TM710D | BW4040PRO | LP21-4040 | RE4040-BE | BW 4040 R |
| 8inch brackish RO membrane | BW30PRO-400 | CAP3-LD | TM720D-400 | BW8400PRO | LP21-8040 | RE8040-BE | BW 400 R Dura |
| 8inch brackish RO membrane Fouling Resistant | BW30FR-400 | LFC3-LD | TML20D-400 | FR8400 | FR12-8040 FR22-8040PRO | RE8040-FEN | BW 400 AFR |
| 8inch sea water RO membrane | SW30HR-380 | SWC5-LD | TM820M-400 TM820V-400 | SW8400HR SW8400HRLE | SW8040HR-400 | RE8040-SHA400 RE8040-SHF | SW 400 SR SW 400 R |
